Hammer Guns 2



Stöd Richard Ströms ärende med några futtiga kronor.

Gärna med mer än så....



Please - no questions about your old guns

Snälla - inga vapenfrågor

 Husqvarna Hammer Shotguns Part 2

Any pictures or other informations that you want to share - please send an email to Tobias(a)shotguns.se.

General information

Huqsvarna started to use breech loading guns 1877 and rebounding locks as late as 1881, and generally 2 1/2” chambers until 1937 (serial number 165700).

Husqvarna called Henry Jones Screw “system Anglais”

Toplever models



m/42

No picture available

This model was made 1879 to 1899, toplever and Purdey slide, with 12 cm long lock plates. 73 to 75cm barrels of Damaskus Steel or Swedish Steel. Nice engraving. 12 or 16 ga.

m/43

No picture available

This model was made 1879 to 1899, toplever and Purdey slide or Clef Serpent, 73 to 75cm barrels of Damaskus Steel. Nice engraving. 12 or 16 ga.

m/44

No picture available

This model was made 1879 to 1892. Toplever, backaction and Purdey slide, with 12 cm long lock plates. Some models have Purdey Slide with or without Greener crossbolt. Do not have the double Purdey slide - not to be used with smokeless powder. 73 to 75cm barrels of Damaskus Steel. Nice engraving. 12 or 16 ga.

m/45

No picture available

This model was made 1880 to 1903, toplever, backaction and Purdey slide, with 12 cm long lock plates. 73 to 75cm barrels of Damaskus Steel or Swedish Steel. Nice engraving. 12 or 16 ga.

A version of m/45 was made 1880 - same as above but bar action.

m/46

No picture available

This model was made 1880 to 1903. Toplever, baraction and Purdey slide - Greener cross bolt. Barrels of Damaskus Steel. From 1901 and onwards this model could be ordered with barrels of Swedish Steel. 73 to 75cm barrels of Damaskus Steel - after 1901 Special Steel barrels on order. Nice engraving. 12 or 16 ga.

From 1901 and onwards this model could be ordered with barrels of Swedish Steel.

m/47

No picture available

This model was made 1884 to 1899, back action with toplever and Purdey slide. 73 to 75cm barrels of Damaskus Steel. From 1901 and onwards this model could be ordered with barrels of Swedish Steel. With or without engraving.

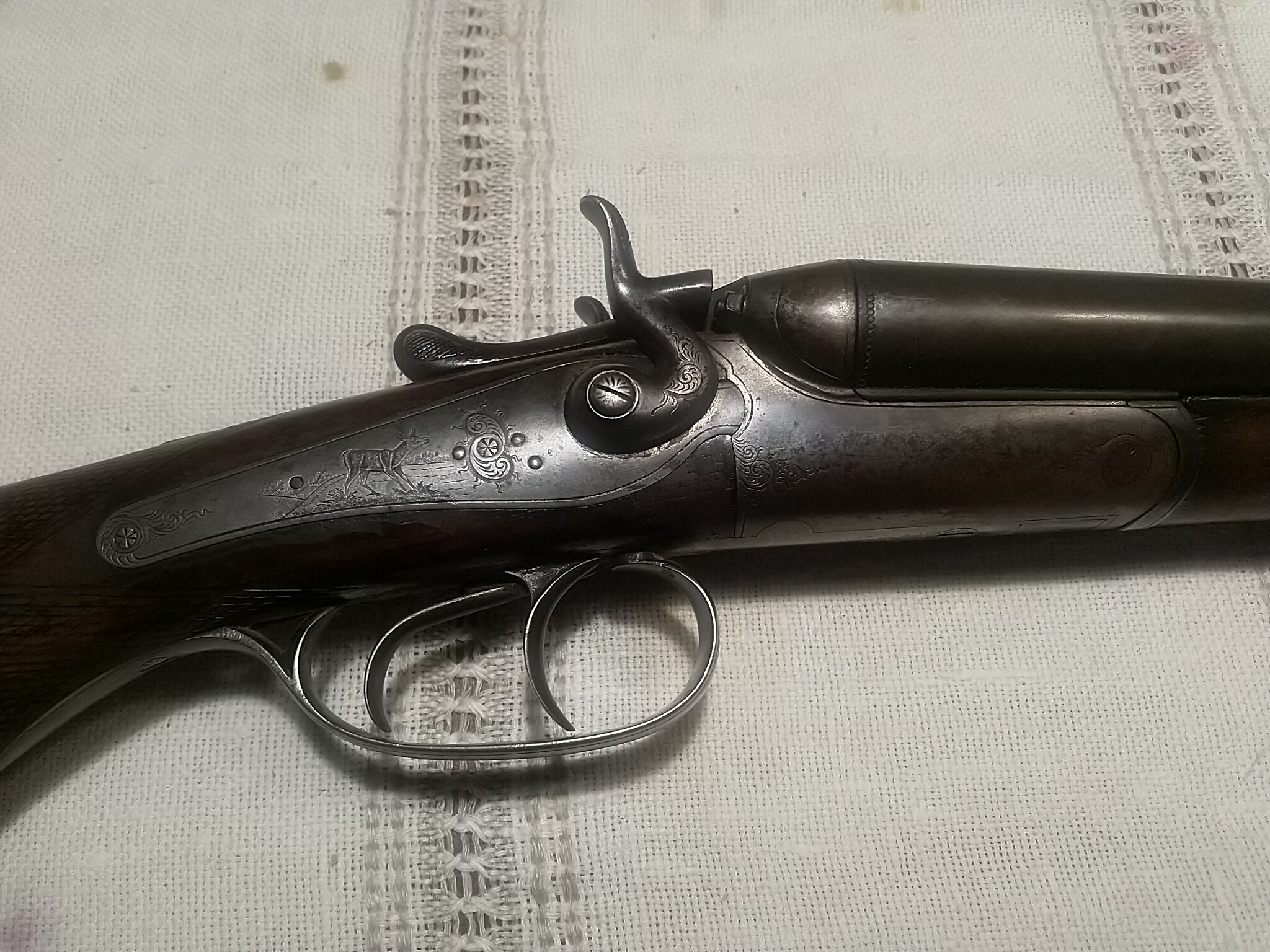

m/48

No picture available

This model was made 1900 to 1913, toplever, backaction, dolls head and Purdey slide, with 12 cm long lock plates. 73 to 75cm barrels of Damaskus Steel or Swedish Steel. Nice engraving. 12 or 16 ga.totally TBD made. Barrels of Sandvik Steel. The first model from Husqvarna that had steel barrels as standard. Nice engraving.

48A. 48B and 49C are capeguns with one 20/24/28ga or 9,3*57R/360 rifled barrel.

48A was made 1901-1913. Barrels of Swedish Steel. 16 or 20ga in smoothbore barrel, 20, 24 or 28 in the rifled barrel.

48B was made 1901-1913. Barrels of Swedish Steel. 16 or 20ga in smoothbore barrel, 12,7x44R in the rifled barrel.

48C was made 1901-1913. Barrels of Swedish Steel. 16 or 20ga in smoothbore barrel, 9,3*57R/360, could be ordered with a 16ga rifled shotgunbarrel.

m/49

No picture available

This model was made 1884 to 1899, toplever, backaction with 12 cm long lock plates, dolls head and Purdey slide, with 12 cm long lock plates. Nice engraving. 12 or 16 ga. 73 to 75cm barrels.

m/50 (old model)

No picture available

This model was made 1901 to 1913, back action with toplever, backaction with 12 cm long lock plates, dolls head and Purdey slide, with 12 cm long lock plates. Nice engraving. 12 or 16 ga. . 73 to 75cm barrels. Nice engraving

m/50 (new model)

No picture available

This model was made 1927 to 1934 - totally 800 made, back action with toplever and Purdey slide. 72cm monoblock barrels of Swedish Steel. No engraving.

m/52

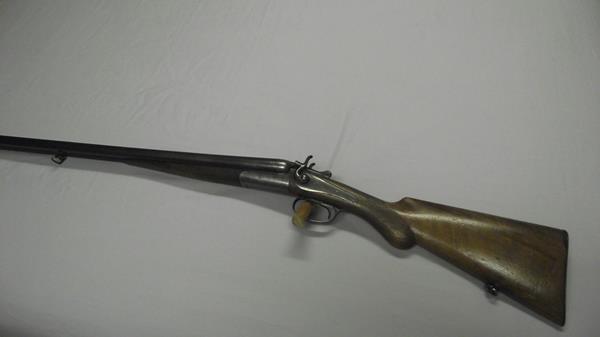

m51

Thanks Ken!

This model was made 1901 to 1913, back action with with 11 cm long lock plates, toplever, Greener crossbolt and Purdey slide - totally 11 000 in 12ga, 3 000 in 16ga and approx. 20 in 20ga was made. 70 to 75cm barrels of Swedish Steel.

m/52

No picture available

This model was made 1913 to 1937, bar action with with 8 cm long lock plates, toplever and Purdey slide and Greener Crossbolt - totally 2800 in 12ga, 1200 in 16ga and approx. 35 in 20ga was made. Barrels of Swedish Steel.

52A was made 1913 to 1929. As m/52 but as cape gun with 16 or 20ga shotgun and 20/24 or 28ga rifled barrel.

52B was made 1913 to 1942. As m/52 but as cape gun with 16 or 20ga shotgun and 12,7x44R.

52C was made 1913 to 1938. As m/52 but as cape gun with 16 or 20ga shotgun and 9,3*57R/360.

m/100

No picture available

This model was made 1905 to 1912, bar action with with 8 cm long lock plates, toplever and Purdey slide and Dolls head. 70 to 75cm barrels of Swedish Steel.

12 or 16ga.

m/101

No picture available

This model was made 1905 to 1912, bar action with 8 cm long lock plates, toplever and Purdey slide and Dolls head. 70 to 75cm barrels of Swedish Special Steel.

12 or 16ga.

m/102

No picture available

This model was made 1905 to 1910, bar action with, toplever and Purdey slide and Greener Crossbolt. 70 to 75cm barrels of Swedish Special Steel or Damaskus Steel

Nice engraving. 12 or 16 ga - a few 20ga was made.

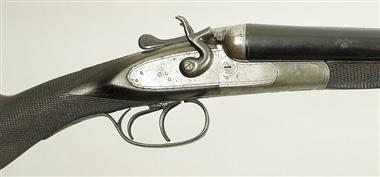

m/103A

This model was made 1905 to 1910, bar action with toplever, Purdey slide and Greener Crossbolt. Barrels of Swedish Steel. With A engraving.

m/103B

No picture available

This model was made 1905 to 1910. As above. With B engraving.

m/103C

No picture available

This model was made 1905 to 1910, As above. With C engraving.

m/103AS

No picture available

This model was made 1905 to 1910. As above. Barrels of Swedish Special Steel. With A engraving.

m/103BS

No picture available

This model was made 1905 to 1910. As above. Barrels of Swedish Special Steel. With B engraving.

m/103CS

No picture available

This model was made 1905 to 1910. As above. Barrels of Swedish Special Steel. With C engraving.

m/103AN

No picture available

This model was made 1905 to 1910. As above. Barrels of Swedish Antioxid Steel. With A engraving.

m/103BN

No picture available

This model was made 1905 to 1910. As above. Barrels of Swedish Antioxid Steel. With B engraving.

m/103CN

No picture available

This model was made 1905 to 1910. As above. Barrels of Swedish Antioxid Steel. With C engraving.
