 1900 - First World War

The following list of models that I have found in old catalogs and the book about Sauer & Sohn. The list is not even close to be complete in any way.

Hammer guns

Generally Sauer & Sohn always used back actions locks, even up to the last models.

Model Falke

Not much known by me....
Minimal engraving, engraved with a falcon - hence it’s name

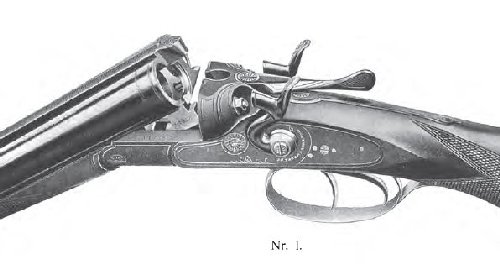

Model I or 1

Caliber 12, 16 & 20
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with dolls head, toplever
The lockplate goes a bit forward of the shells.
Barrels made of Kruppschem Fluss-Stahl.

Very plain engraving.

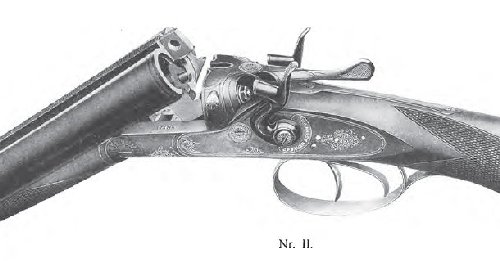

Model II or 2

Caliber 12, 16 & 20
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with Greener crossbolt, toplever
The lockplate goes a bit forward of the shells
Barrels made of Kruppschem Fluss-Stahl.

Very plain arabesque engraving.



Model III or 3

As m/2 but as cape gun / combination gun. Rifle barrel in 8-11 mm caliber, for blackpowder.



Model IV or 4

As m/3 and m/2 - with two barrels: one for shot, one cape gun.

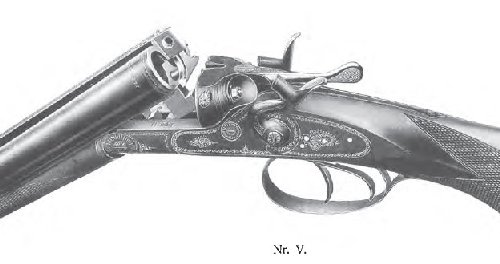

Model V or 5

As m/2 but as with better engraving and better wood quality.



Model VI or 6

As m/3 but as with better engraving and better wood quality.
Rifle barrel of Kruppchen Guss-Stahl, shot barrels of Kruppchen Fluss-Stahl.



Model VII or 7

As m/7 but with two barrels: one for shot, one cape gun.

Hammerless Boxlocks

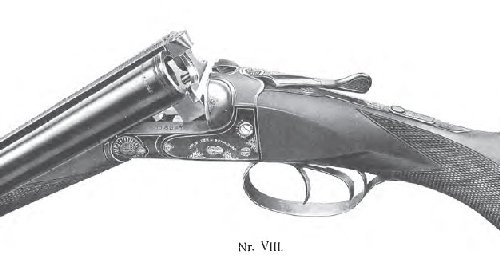

Model VIII or 8

Mod 8 is an old model, that have had some development over the years.

Mod 8 had overlaying sear that works on the tumbler somewhere in the period 1908 to 1912. Before that period the sear was placed under the tumblers as the original Anson-Deeley patent.

Caliber 12, 16 & 20
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with dollshead (1907), Greener crossbolt (approx 1920), action has ears (approx 1935), toplever
Barrels made of Kruppschem Fluss-Stahl.



Modell IX (9)

As m/8 as cape gun
Caliber 12, 16 & 20 and with rifle barrel caliber 8-9 or 11mm (for black powder)
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with dollshead (1907), Greener crossbolt (approx 1920), action has ears (approx 1935), toplever
Barrels made of Kruppschem Fluss-Stahl.



Modell X (10)

As m/8 as shotgun and  cape gun with two sets of barrels
Caliber 12, 16 & 20 and with rifle barrel caliber 8-9 or 11mm (for black powder)
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with dollshead (1907), toplever
Barrels made of Kruppschem Fluss-Stahl.

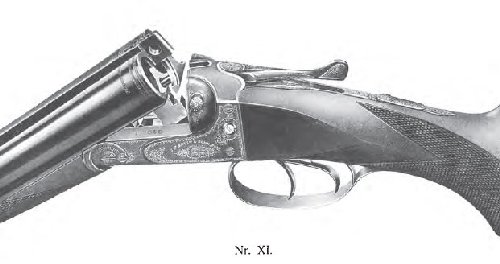

Modell XI (11)

Caliber 12, 16 & 20
Prince of Wales grip with cheek piece.
Purdey double sliding bolt Greener crossbolt, action with safety interceptor, toplever
Barrels made of Kruppschem Fluss-Stahl.

Better engraving, better wood - in short better quality than m/8.



Modell XII (12)

As m/11 as cape gun.



Modell XIII (13)

As m/11 as shot gun and cape gun with two sets of barrels.

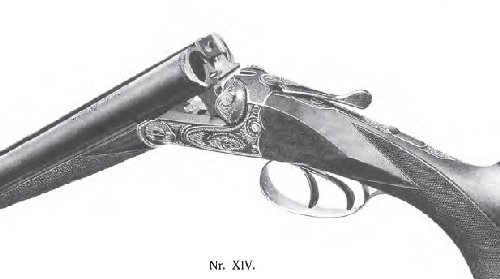

Modell XIV (14)

Caliber 12, 16 & 20
Prince of Wales grip with cheek piece.
Purdey double sliding bolt Greener crossbolt, action with safety interceptor and ears, toplever
Barrels made of Kruppschem Fluss-Stahl.

Better engraving, better wood - in short better quality than m/11.



Modell XV (15)

As m/15 as cape gun.



Modell XVI (16)

As m/15 as shot gun and cape gun with two sets of barrels.

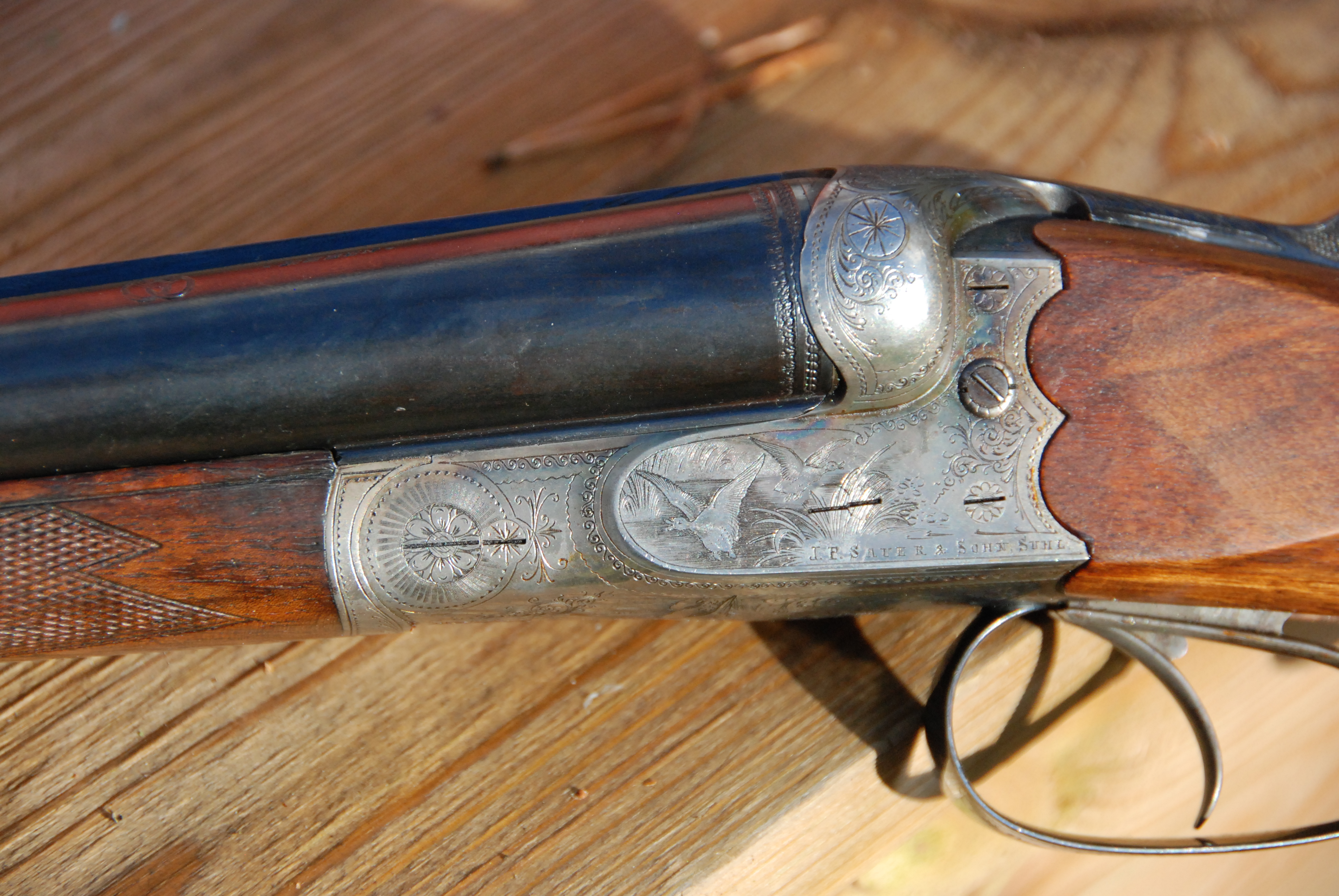

Modell XVII (17)

As m/15 equipped with ejectors.

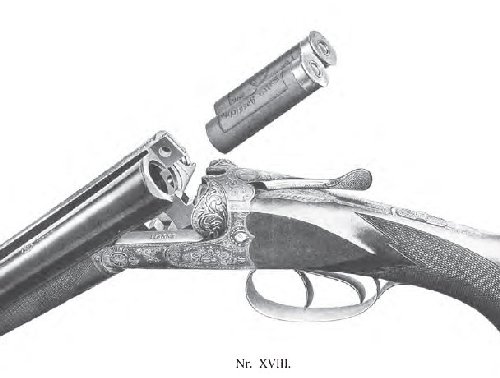

Modell XVIII (18)


Meisterstück (Masterpiece) version of m/15.

Drillings

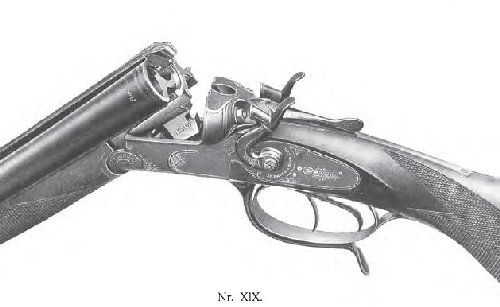

Modell XIX (19)

Förster drilling”

Caliber 12, 16 & 20 and rifle barrel 8 to 11 mm (black powder)
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with dolls head, underlever opening, toplever to choose barrels.
Barrels made of Kruppschem Fluss-Stahl.

Very plain engraving.



Modell XX (20)

As m/19 but with diopter sight on top strap, better engraving, better wood.

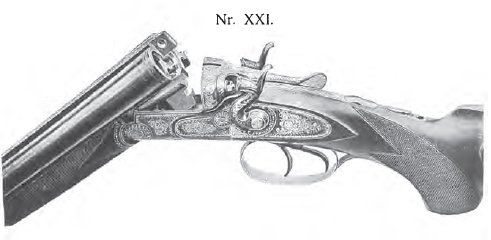

Modell XXI (21)

Caliber 12, 16 & 20 and rifle barrel 8 to 11 mm (black powder)
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with Greener crossbolt, toplever opening, barrel selector on top strap.
Barrels made of Kruppschem Fluss-Stahl.

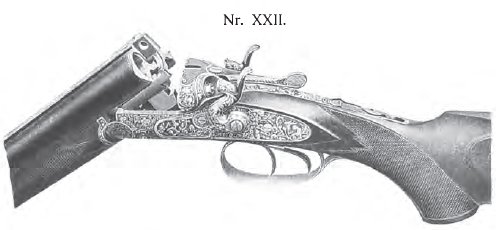

Modell XXII (22)

As m/21 but made as a Meisterstuck (masterpiece).

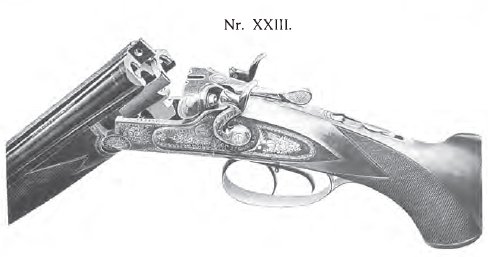

Modell XXIII (23)

As m/21 but with two rifle barrels and one shotgun barrel.

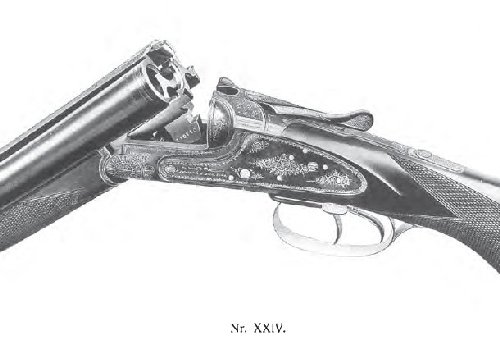

Modell XXIV (24)

Caliber 12, 16 & 20 and rifle barrel 8 to 11 mm (black powder)
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with Greener crossbolt, toplever opening, barrel selector on sidelever (also to cock rifle barrels lock).
Shot barrels made of Kruppschem Fluss-Stahl, rifle barrels.

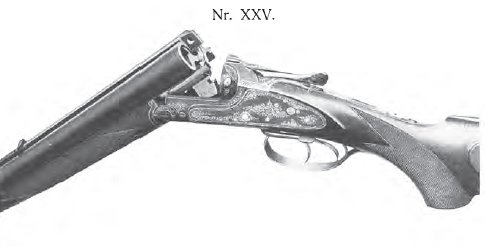

Modell XXV (25)


As m/24 but with Greener crossbolt

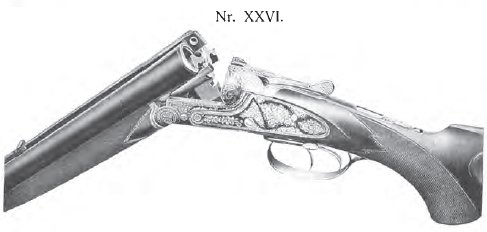

Modell XXVI (26)


As m/25 but as Meisterwerk

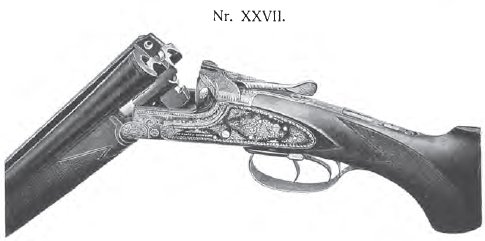

Modell XXVII (27)


Double rifle combination gun

Pigeon Guns / Taubenflinten

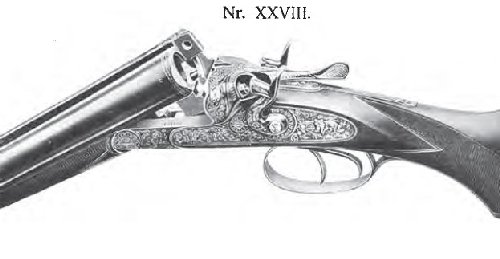

Modell XXVIII (28)


Caliber 12
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with Greener crossbolt and sideclips on breech, toplever opening.
Shot barrels made of Kruppschem Fluss-Stahl

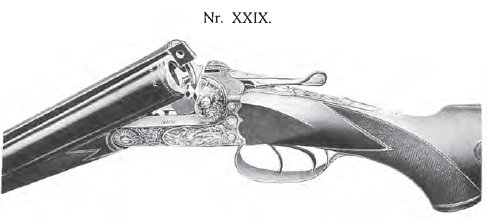

Modell XXIX (29)


Caliber 12
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with Greener crossbolt and sideclips on breech, toplever opening.
Shot barrels made of Kruppschem Fluss-Stahl
Made as above and with ejector.

Kiplauf

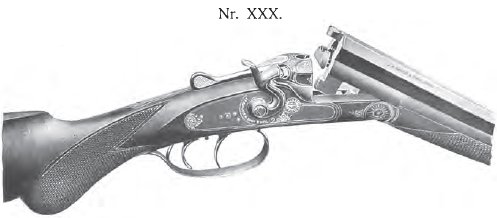

Modell XXX (30)


Caliber 8mm to 11mm black powder
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with dolls head, toplever opening.

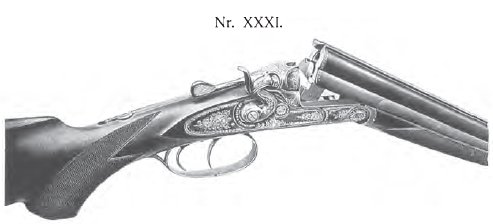

Modell XXXI (31)


As m/30 but with rib and round barrel and better engraving.

Modell Tell (1896-1936 )


Roux system with under lever
Calibers:
Tell 1: 13mm shot.
Tell 2: 6mm Winchester (22 Short)
Tell 3: 6mm Winchester (22 Winchester Central Fire)
Tell 4: 8mm centralfire (32 Winchester)
Tell 5: 9x57R/360, note: not 9,3x57R based on the famous m/88 cartridge!



Double rifles

Modell XXXII (32)


Caliber 8mm to 11mm black powder
Prince of Wales grip with cheek piece.
Purdey double sliding bolt with Greeners crossbolt, toplever opening.

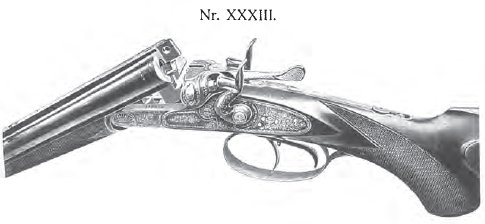

Modell XXXIII (33)


As above but with magazine in stock for 4 cartridges and equipped with diopter sight.

Modell XXXIV (34)


m/14 as a double rifle.
